ARES 72 OPV

OFFSHORE PATROL VESSEL

ps-1
ps-1
ps-1
ps-1
ps-1
ps-1

OVERVIEW

ARES 72 OPV OFFSHORE PATROL VESSEL

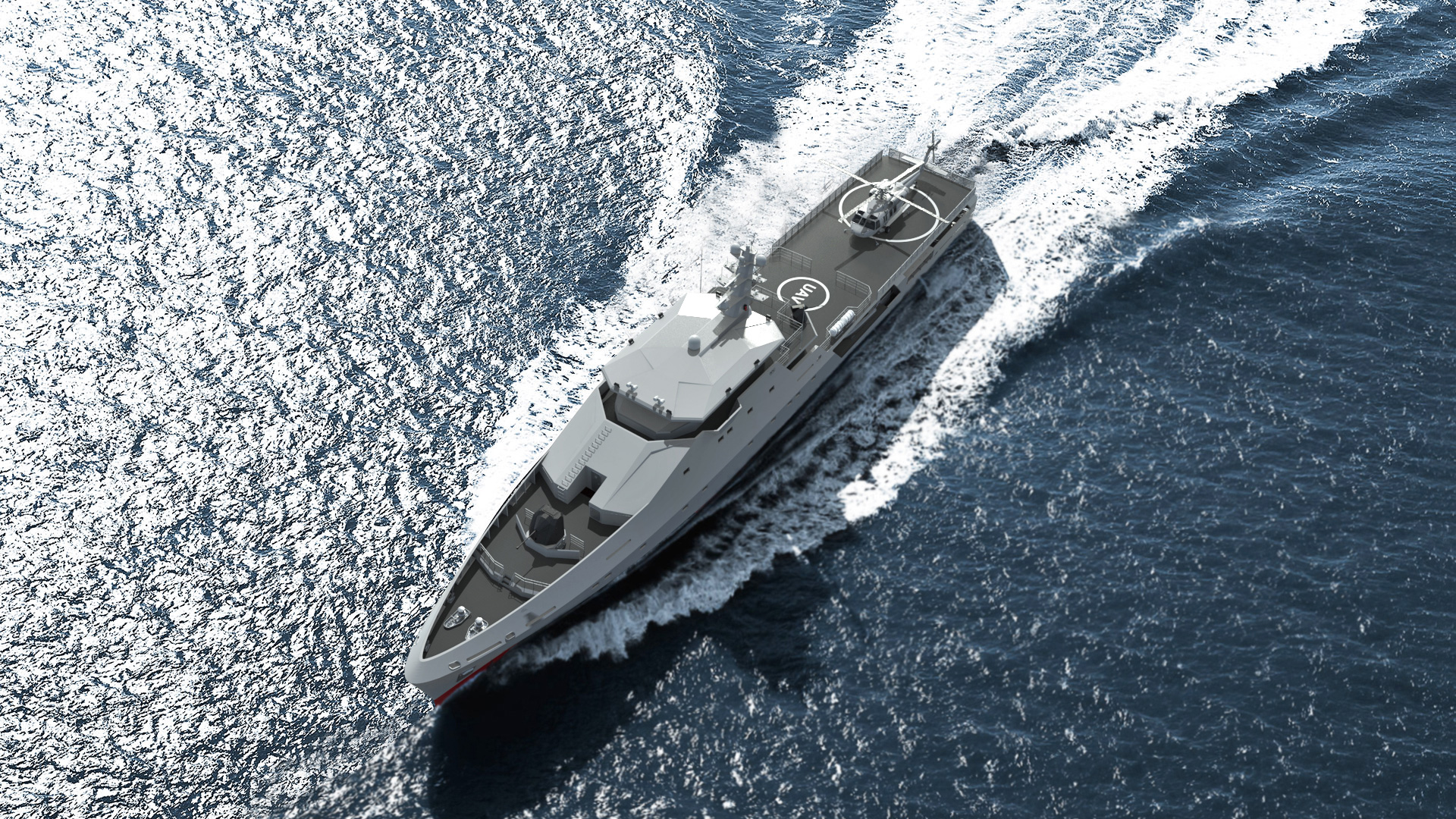

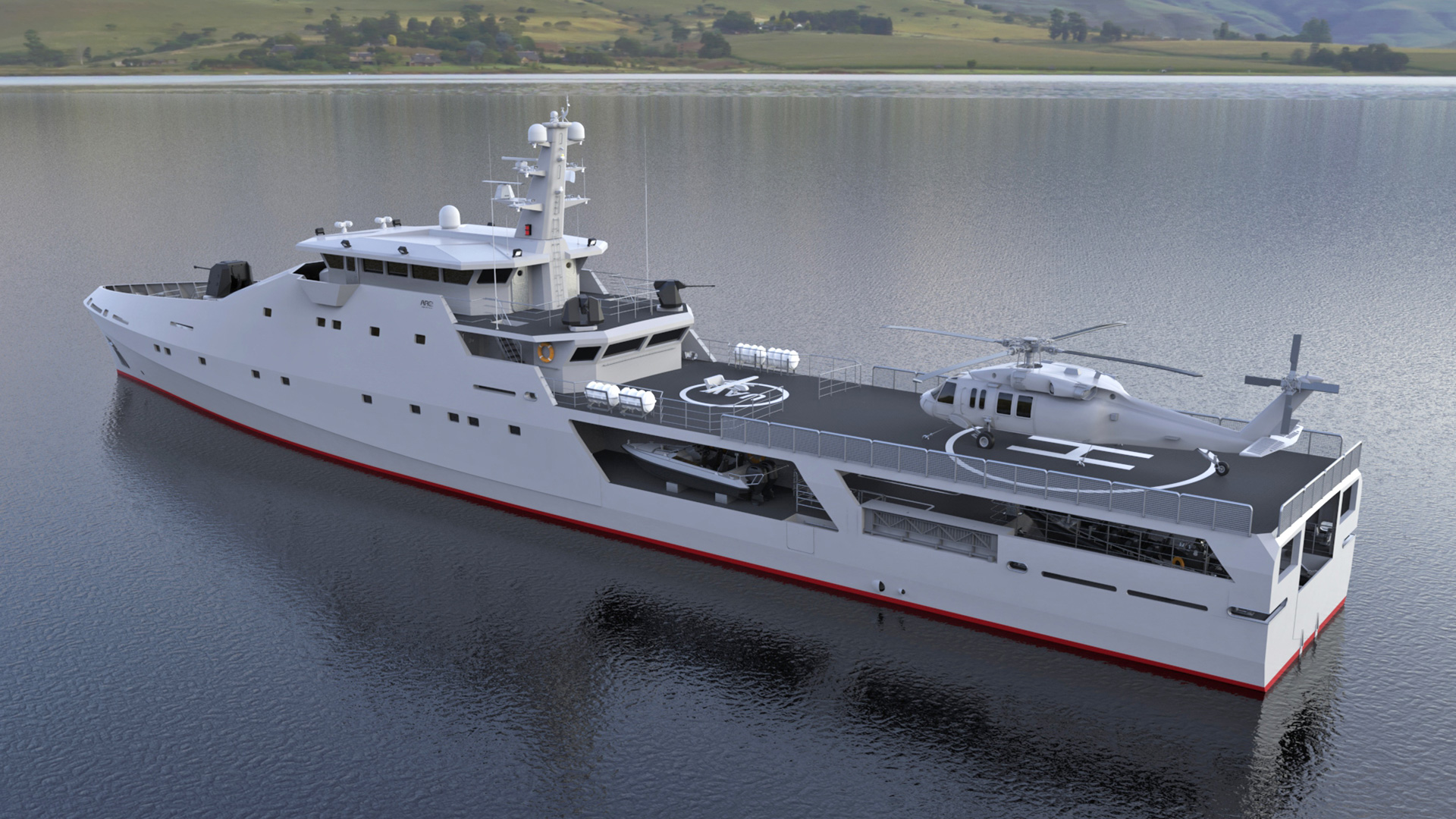

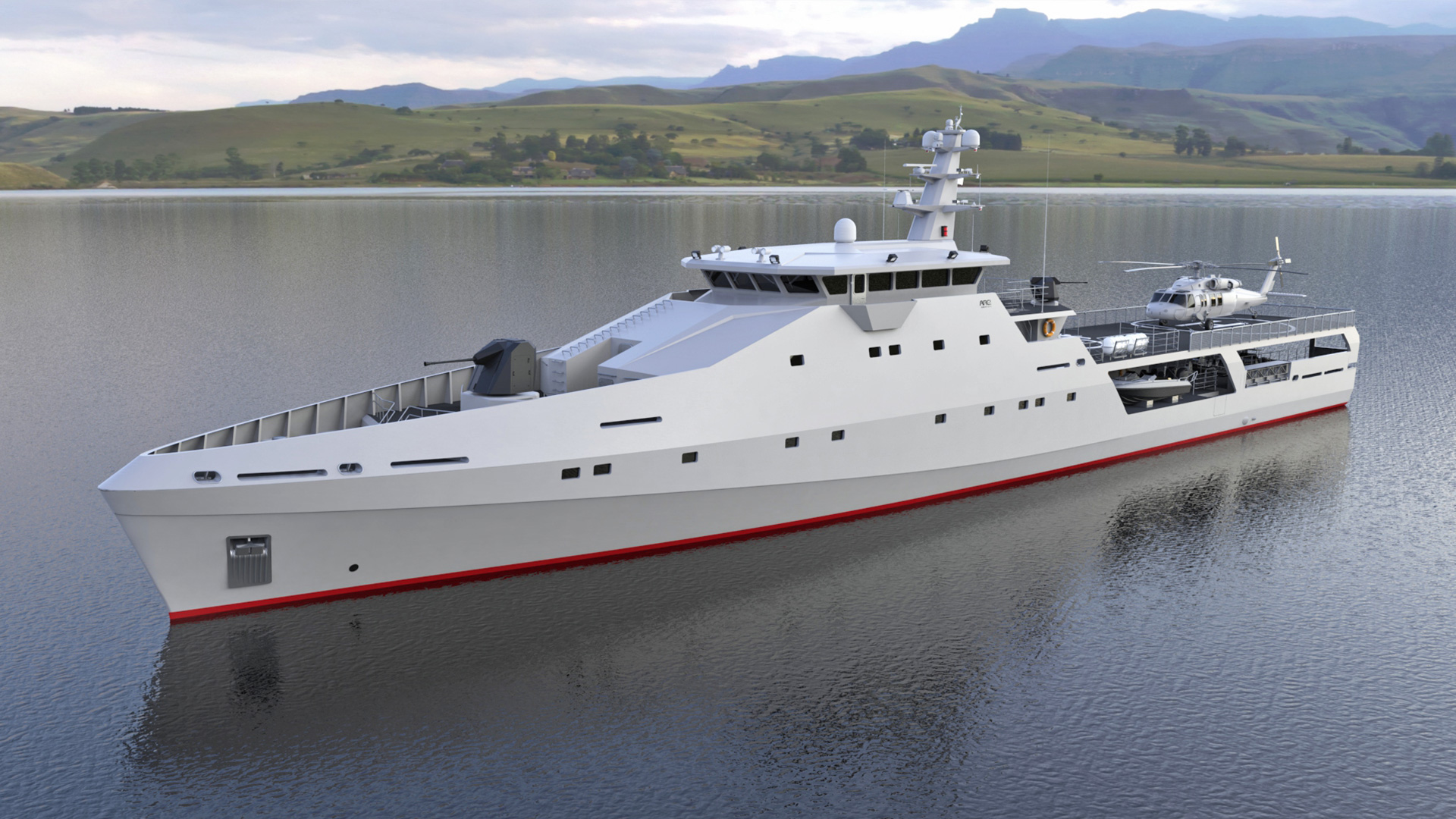

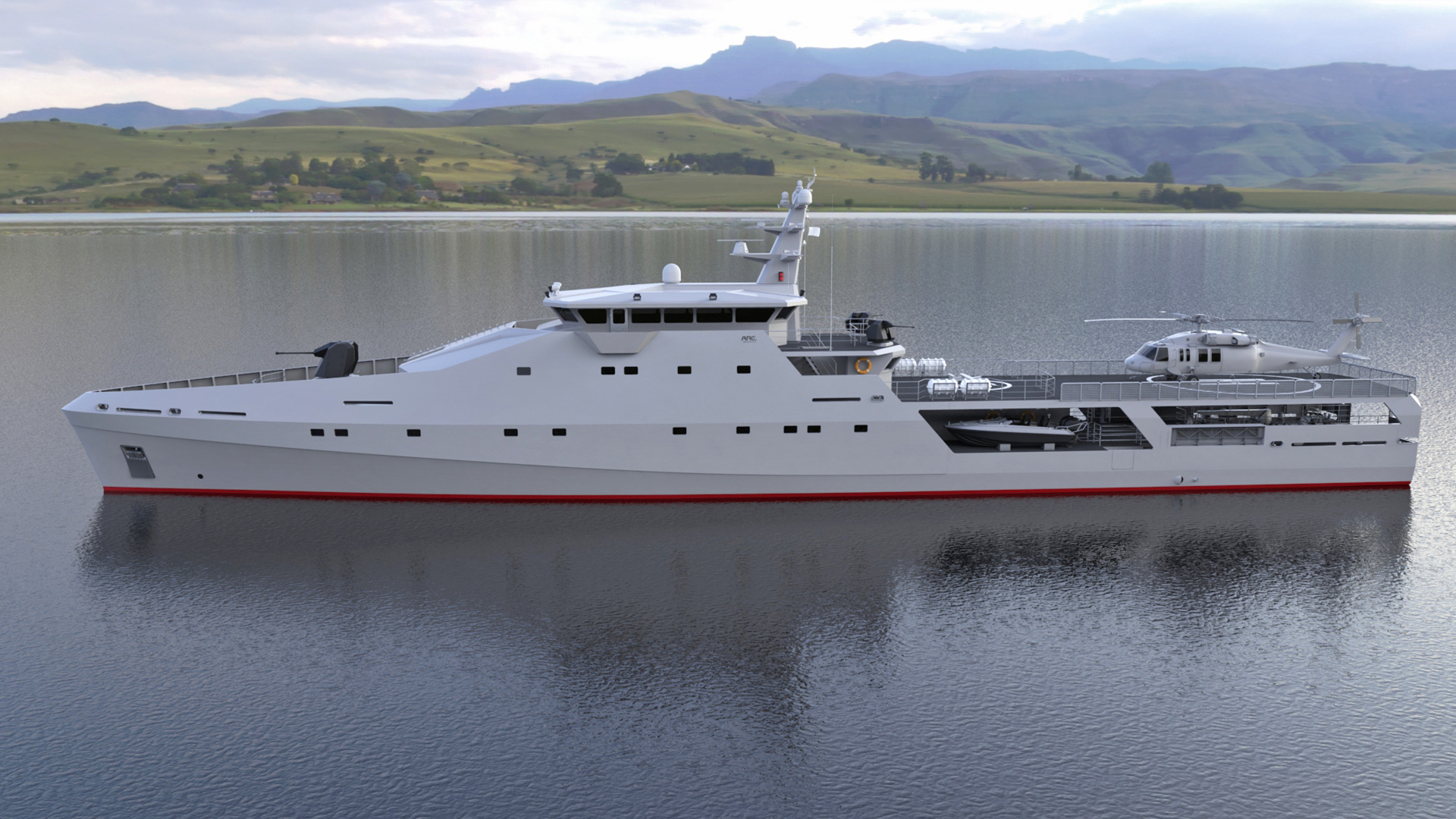

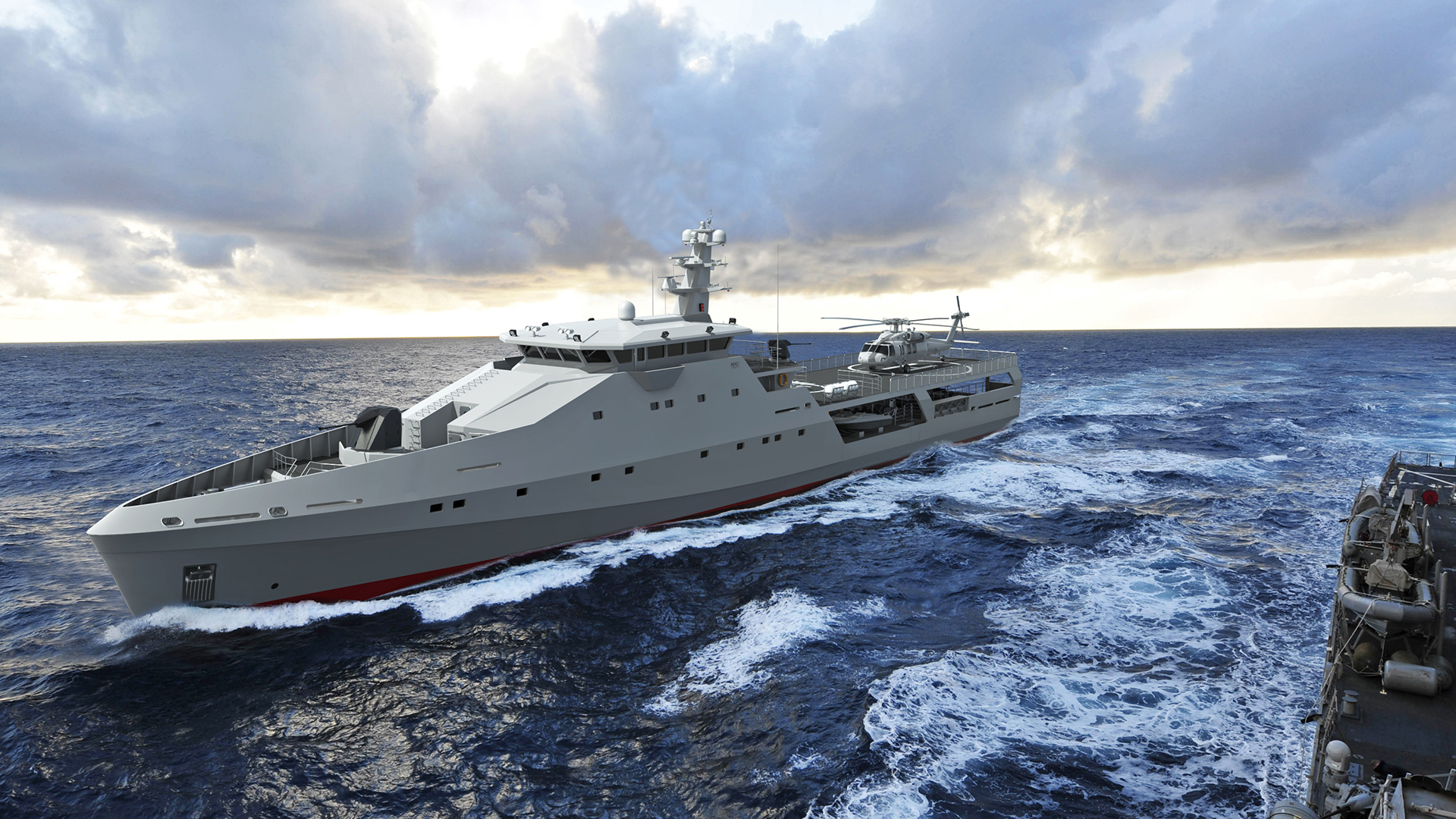

ARES 72 OPV is a 72m in length Offshore Patrol Vessel, designed by ARES Shipyard for EEZ (Exclusive Economic Zone) and offshore patrol, search & rescue, anti-smuggling, anti-piracy, special forces operations and naval missions. The hull form is designed for high efficiency at cruise and high speeds, for optimum fuel economy and sustainable missions. Extensive fuel storage provides for a range of over 3,000 Nm at economic speed. The vessel is designed for unrestricted operations in conditions up to Sea State 7. The design includes a flight deck for day/night helicopter operations. There are also manned fast interceptor RHIBs or ULAQ series Unmanned Surface Vehicles onboard to be configured as per end user requests.

*Please contact us for further information.

TECHNICAL DETAILS

Length Overall 72.00 m
Beam 11.00 m
Hull Draught 3.10 m
Max Speed 22.00 Knots
Main Propulsion System All Diesel or Hybrid with FPP or CPP Options
Construction Material Steel Hull & Aluminum Superstructure
Onboard Equipment 1 x Aft Deck Interceptor or ULAQ USV
2 x Tender Boats or ULAQ USV
Classification IACS
Design By ARES Shipyard

Please note that the specifications given are fully customizable as per the end user’s specific operational requirements.
